Understanding the 4-Pin PWM Fan Connection

1. Demystifying the PWM Connection

Ever stared at your computer's motherboard and wondered where exactly that little 4-pin PWM fan connector is supposed to go? You're definitely not alone! It can seem a bit daunting, especially when you're trying to build or upgrade your PC. This little connector is the key to keeping your system cool and quiet, but locating it is the first step.

The 4-pin PWM connector is all about precision. It allows the motherboard to control the speed of your fan using Pulse Width Modulation (PWM). This means your fan only spins as fast as it needs to, keeping things quiet when the system is idle and cranking up the cooling power when things get heated. It's a clever system that balances performance and noise.

So, where exactly does it go? Most motherboards have several fan headers scattered around the board. Look for ones labeled "CPU_FAN," "CHA_FAN" (chassis fan), or "SYS_FAN" (system fan). The CPU_FAN header is almost always near the CPU socket, while CHA_FAN and SYS_FAN headers are usually positioned around the edges of the board to accommodate fans in different parts of your case. Take a look at your motherboard manual. It's the map to treasure in this scenario. The manual will show you exactly where all the headers are located.

Before you get too far, a word of caution: Don't just jam the connector in randomly! Make sure the connector is aligned correctly. Most headers have a little plastic clip that aligns with a corresponding notch on the fan connector. Forcing it in the wrong way can damage the connector or the fan itself. Take your time and double-check before you press anything. Nobody wants a fried fan on their hands, right?

Motherboard Fan Connectors What They Are And How Work

Identifying the Right Header on Your Motherboard

2. Pinpointing the Correct Spot

Okay, so you know you're looking for a 4-pin header, but how do you differentiate it from all the other connectors on your motherboard? Thats a fair question! Motherboards can look like a city skyline with all the different pins and connectors sticking up.

First, check the labels printed directly on the motherboard. As mentioned earlier, look for labels like "CPU_FAN," "CHA_FAN," or "SYS_FAN." These labels are usually printed very close to the header itself, so you shouldn't have to hunt too hard. The CPU_FAN is usually reserved for the cooler that's keeping your CPU from spontaneously combusting, so that one's generally pretty important.

If the labels are tiny or hard to read (it happens!), refer back to your motherboard manual. It's the decoder ring to all the mysteries on your board. The manual will provide a detailed diagram of the motherboard layout, clearly indicating the location of each header and its function. Most motherboard manufacturers are pretty good about making this clear, so take a look.

Another helpful tip is to look at the physical layout of the header itself. 4-pin fan headers will obviously have four pins. Older 3-pin fan headers are similar but only have three. Make sure you're plugging your 4-pin fan into a 4-pin header. Using an adapter is possible, but then you lose PWM control, which sort of defeats the purpose.

What Happens if You Plug It in the Wrong Place?

3. The Consequences of Misplaced Connections

So, what if you accidentally plug your 4-pin PWM fan into the wrong header? Will your computer explode? (Probably not.) But there are some potential consequences you should be aware of. Plugging your fan into the wrong header is usually not a catastrophic problem, but it can prevent the fan from working properly, or at all.

One common issue is that the fan might run at full speed all the time, regardless of the CPU temperature. This is because some headers might not support PWM control, meaning they only provide a constant voltage to the fan. This can be noisy and inefficient. If you're looking for a quiet system, having your fans running at full blast constantly is definitely not ideal.

In some cases, the fan might not spin at all if plugged into an incompatible header. This could be due to a voltage mismatch or the header not being designed to power a fan. Obviously, if your CPU cooler isn't running, you're going to have some overheating issues, so it's crucial to make sure the CPU fan is correctly connected. Overheating isn't a pathway to the cool running machine you were after.

Furthermore, plugging a fan into the wrong header can sometimes interfere with the motherboard's fan control settings. You might find that you're unable to adjust the fan speed in the BIOS or through software utilities. This is because the motherboard is expecting the fan to be connected to a specific header with specific capabilities. So, double-check your connections to avoid any frustration down the line. Its all about smooth sailing during your PC building journey.

For 4 Pin Pwm Pinout

Benefits of Using PWM Fans

4. The Advantages of Precision Cooling

Why go to all this trouble to connect your fans to the correct PWM headers? Well, PWM fans offer several advantages over older 3-pin fans, and the ability to precisely control their speed is the main draw. This level of control has some pretty neat benefits for your computer's performance and noise levels.

One of the biggest benefits is quieter operation. PWM fans only spin as fast as needed to keep your system cool. When your computer is idle or performing light tasks, the fans can spin at a lower speed, producing significantly less noise. This can make a huge difference if you're sensitive to noise or if you're trying to build a quiet PC for a home theater or recording studio. Who wants to hear a jet engine when they're trying to enjoy a movie?

PWM fans also contribute to better temperature management. By dynamically adjusting the fan speed based on temperature, they can keep your components running at their optimal temperature range. This can improve performance and prolong the lifespan of your components. Overheating can lead to performance throttling and even permanent damage, so keeping things cool is essential.

Finally, PWM fans can be more energy-efficient. Because they only draw the power they need, they can consume less energy than fans that run at full speed all the time. This might not seem like a huge deal, but it can add up over time, especially if you have multiple fans in your system. Plus, every little bit helps when it comes to reducing your carbon footprint. It's like being eco-friendly, one fan at a time!

Troubleshooting Fan Connection Issues

5. Fixing Common Problems

Sometimes, even when you think you've done everything right, things can still go wrong. If your 4-pin PWM fan isn't working as expected, don't panic! There are a few common issues you can troubleshoot to get things back on track.

First, double-check the fan connections. Make sure the fan connector is securely plugged into the correct header on the motherboard. Sometimes, it might feel like it's in, but it's not fully seated. Also, verify that the connector is aligned correctly and that no pins are bent or damaged. Bent pins can prevent proper contact and stop the fan from working.

Next, check your BIOS settings. Most motherboards allow you to configure fan control settings in the BIOS. Make sure the fan header is enabled and that the fan speed control is set to PWM mode. Some BIOS settings might default to voltage control, which won't allow the fan to be controlled properly. Consult your motherboard manual for specific instructions on how to access and configure these settings.

If the fan is still not working, try a different fan header. This will help you determine if the problem is with the fan itself or with the header on the motherboard. If the fan works on a different header, then the original header might be faulty. If the fan still doesn't work, then the fan itself might be defective and may need to be replaced. If you have a fan controller, you can try plugging the fan into it and see if the controller can adjust the fan speed.

3 Vs 4 Pin Fan Connector Noctua NFF12 PWM TechDragon.info YouTube

FAQ

6. Frequently Asked Questions

Here are some common questions about 4-pin PWM fan connections:

Q: Can I plug a 3-pin fan into a 4-pin header?

A: Yes, you can! It will work, but you won't have PWM control. The fan will run at a constant speed, usually full speed, based on the voltage supplied by the header. To control a 3-pin fan via voltage, you need to ensure the motherboard supports voltage control on that particular header. But for quiet running and temp management, try to stick to 4-pin fans if possible.

Q: My fan is spinning too fast/slow. How do I fix it?

A: First, check your BIOS settings and make sure the fan speed control is set to PWM mode and that the target temperature is set appropriately. You can also use fan control software to adjust the fan speed curve. It's all about finding that sweet spot where noise and cooling are balanced.

Q: My CPU fan isn't spinning. What should I do?

A: Immediately shut down your computer! A CPU fan that isn't spinning can lead to overheating and damage. Check the fan connection, make sure the header is enabled in the BIOS, and try a different fan header. If the fan still isn't working, the fan might be defective and needs to be replaced. It's a bit of PC triage, but essential for the health of your system.

Q: Can I use a fan splitter to connect multiple fans to a single header?

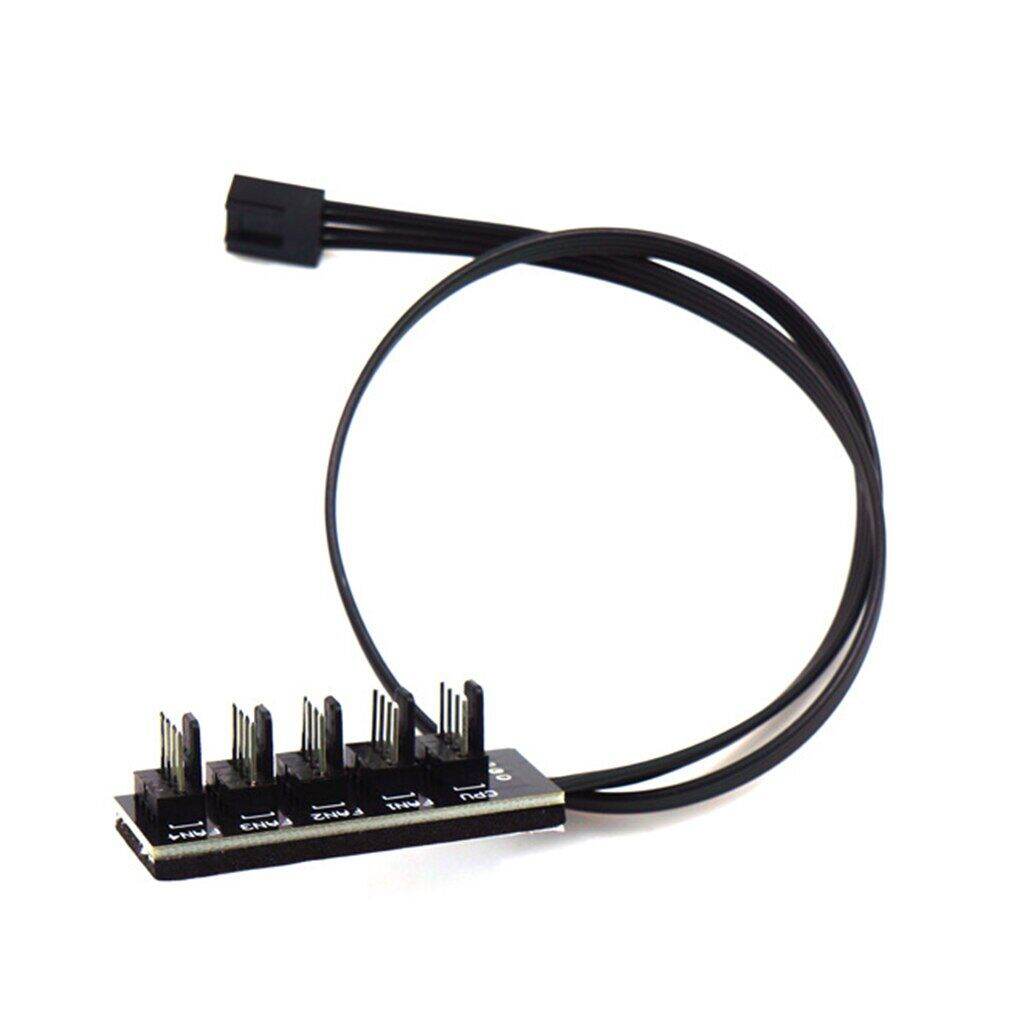

A: Yes, but be careful not to overload the header. Motherboard fan headers typically provide a limited amount of power (usually around 1 amp). Connecting too many fans to a single header can damage the motherboard. Check the specifications of your motherboard and fans to make sure you're not exceeding the power limit. If you need to connect a lot of fans, consider using a powered fan hub, which draws power directly from the power supply instead of the motherboard. Think of it as a safe way to multiply your fan connections.
